Add New Subscriber ​

Overview ​

Add New Subscriber allows you to create individual subscriber accounts in the system. This feature automatically sets up the subscriber profile, creates Radius authentication, assigns packages, and sends welcome notifications via SMS and email.

WHAT IS ADD NEW SUBSCRIBER?

Add New Subscriber is a comprehensive account creation feature that:

  • Quick Setup - Create subscriber in one step
  • Auto Radius - Automatically creates Radius authentication
  • 3-Minute Trial - Auto-expires in 3 minutes (requires activation)
  • Package Assignment - Links subscriber to selected package
  • Identity Verification - Optional document upload
  • Duplicate Prevention - Validates unique username, phone, identity
  • Auto Notifications - Sends SMS/Email with credentials
  • Permission-Based - Admin/Staff can assign salesperson, Resellers auto-assigned

Perfect for: Quick subscriber onboarding, trial accounts, new customer registration!

📋 Table of Contents ​

  1. How It Works
  2. Permission-Based Access
  3. Step-by-Step Guide
  4. Required Fields
  5. Optional Fields
  6. Validation Rules
  7. Auto-Generated Data
  8. Best Practices

How It Works ​

The Process ​

1. Fill Subscriber Form → 2. Validate Data → 3. Upload Document (Optional) →
4. Create Subscriber → 5. Create Radius Auth → 6. Set 3-Min Expiry →
7. Send Notifications → 8. Activity Logged

What Happens When You Add ​

Automatic Actions:

  • ✅ Subscriber profile created with status 2 (Active)
  • ✅ Radius authentication created (Expiration attribute)
  • ✅ Package pool updated in Radius
  • ✅ Radusergroup updated
  • ✅ Subscriber password set in Radius
  • ✅ Auto-expiration set to 3 minutes from now
  • ✅ Subscriber service record created
  • ✅ Document linked to subscriber (if uploaded)
  • ✅ SMS sent with credentials
  • ✅ Email sent with credentials
  • ✅ Activity log generated

Permission-Based Access ​

Admin & Staff ​

Can Do:

  • ✅ Add subscribers for any salesperson
  • ✅ Select salesperson from dropdown
  • ✅ Assign to Reseller, Sub-reseller, or Retailer
  • ✅ Full access to all fields

Salesperson Selection:

Admin/Staff → Can select any salesperson
Subscriber assigned to selected salesperson

Reseller, Sub-reseller, Retailer ​

Can Do:

  • ✅ Add subscribers for themselves only
  • ✅ Salesperson auto-assigned (cannot change)
  • ✅ Access to all subscriber fields
  • ✅ Must have assigned packages

Salesperson Assignment:

Reseller → Subscriber assigned to Reseller
Sub-reseller → Subscriber assigned to Sub-reseller
Retailer → Subscriber assigned to Retailer

Reseller Staff ​

Can Do:

  • ✅ Add subscribers for parent reseller
  • ✅ Salesperson auto-assigned to parent
  • ✅ Access to all subscriber fields

Salesperson Assignment:

Reseller Staff → Subscriber assigned to Parent Reseller

Step-by-Step Guide ​

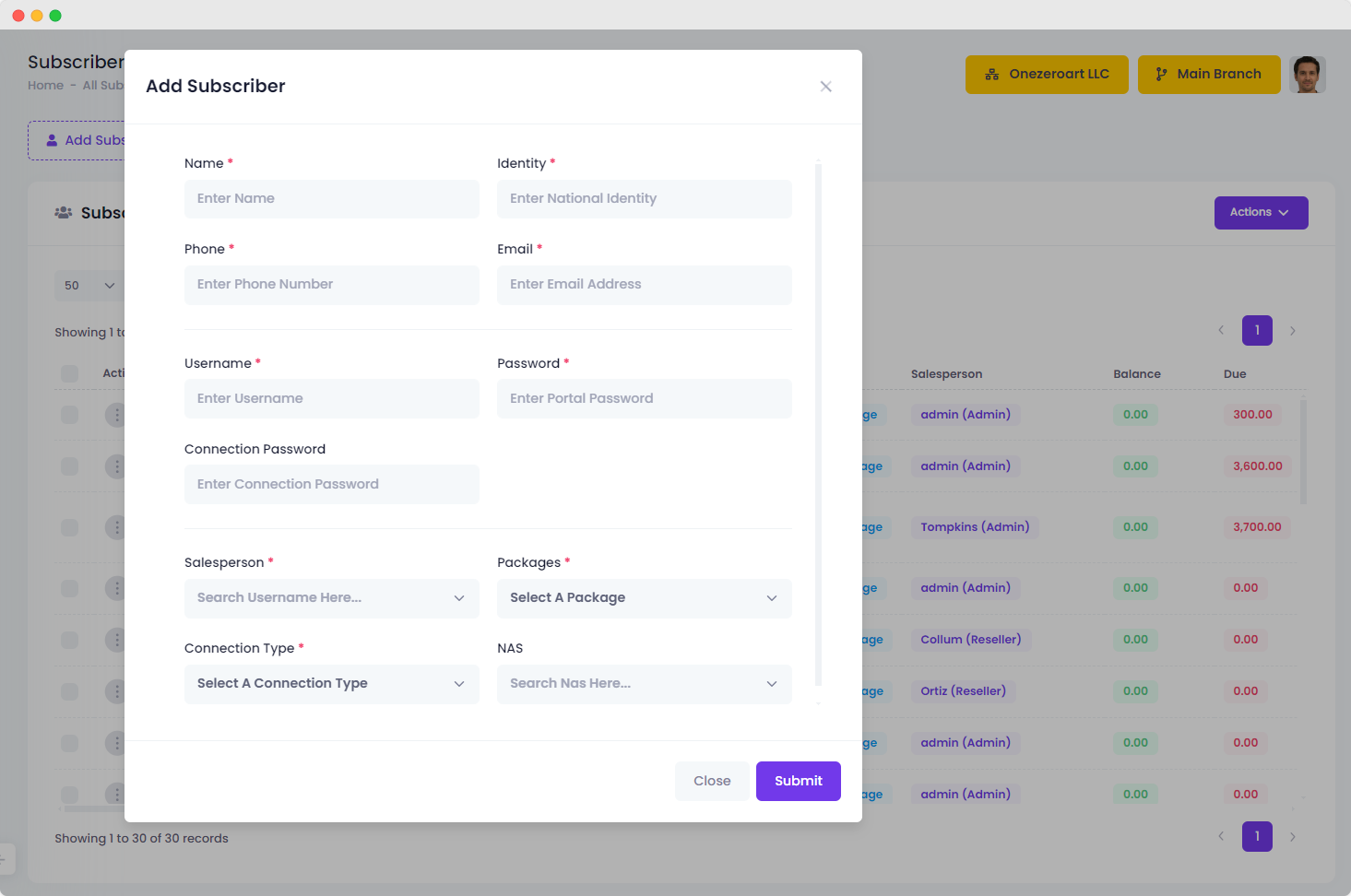

Step 1: Access Add Subscriber ​

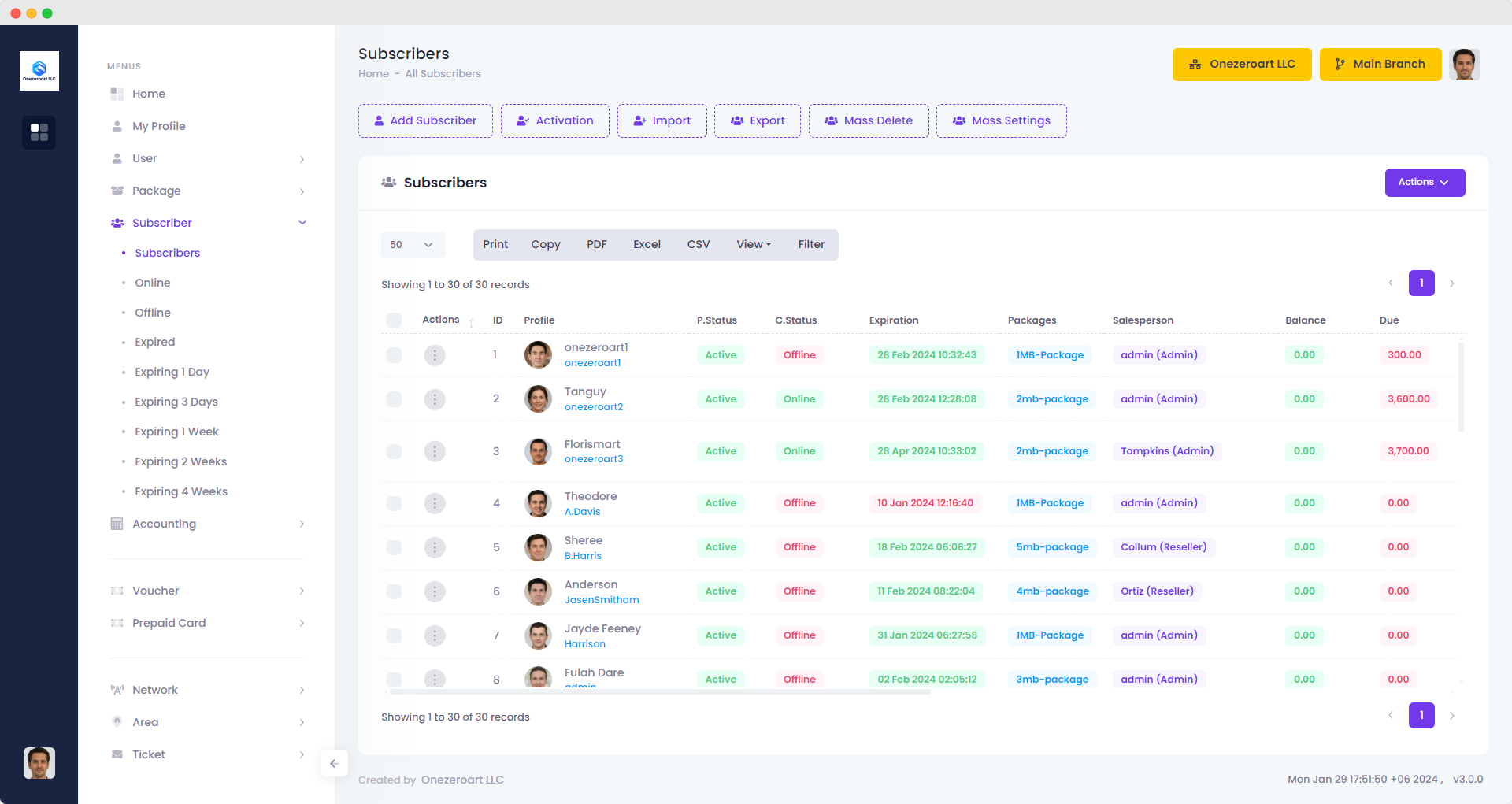

From Subscriber List:

  1. Go to Subscribers
  2. Click "Add Subscriber" button
  3. Modal/Form opens

Step 2: Fill Required Fields ​

Must Provide:

  1. Full Name (3-32 characters)
  2. Username (3-25 characters, unique)
  3. Password (max 32 characters)
  4. Phone (numeric, unique by default)
  5. Identity (numeric, unique by default)
  6. Package (select from assigned packages)

Admin/Staff Only: 7. Salesperson (select from dropdown)

Step 3: Fill Optional Fields ​

Can Provide:

  1. Email (valid email format)
  2. Connection Password (defaults to password)
  3. Connection Type (PPPoE, Hotspot, etc.)
  4. NAS (select from available NAS)
  5. Address
  6. Country, Province, City, Area, Subarea
  7. Latitude, Longitude (for mapping)
  8. Department
  9. Join Date (defaults to current datetime)

Step 4: Upload Identity Document (Optional) ​

If Identity File Setting Enabled:

  1. Document Type (required)
    • Passport
    • Driver's License
    • National ID
    • Other
  2. Identity File (required)
    • Formats: PDF, DOCX, JPEG, PNG
    • Upload document

Step 5: Submit ​

  1. Review all entered data
  2. Click "Submit" or "Add" button
  3. Wait for processing
  4. System validates and creates subscriber

Step 6: Review Results ​

Success Message:

Subscriber Successfully Added.

What Happened:

  • Subscriber profile created
  • Radius authentication set up
  • 3-minute trial expiration set
  • Notifications sent
  • Activity logged

Next Steps:

  • Activate subscriber (required within 3 minutes)
  • Subscriber can connect but will expire in 3 minutes
  • Must activate to extend expiration

Required Fields ​

1. Full Name ​

What It Is:

  • Subscriber's full name for identification

Requirements:

  • Minimum: 3 characters
  • Maximum: 32 characters
  • Required field

Example:

John Doe
Muhammad Rahman

2. Username ​

What It Is:

  • Unique username for Radius authentication
  • Used for PPPoE/Hotspot login

Requirements:

  • Minimum: 3 characters
  • Maximum: 25 characters
  • Must be unique (system-wide)
  • Spaces automatically removed
  • Required field

Example:

john.doe
user12345

3. Password ​

What It Is:

  • Subscriber's account password
  • Hashed in database (bcrypt)

Requirements:

  • Maximum: 32 characters
  • Required field
  • Stored securely (hashed)

Example:

SecurePass123
MyPassword@2024

4. Phone ​

What It Is:

  • Subscriber's contact phone number
  • Used for SMS notifications

Requirements:

  • Must be numeric
  • Unique by default (configurable)
  • Non-numeric characters removed
  • Required field

Duplicate Prevention:

  • Default: Phone must be unique
  • Can be disabled in Subscriber Settings
  • Setting: allow_duplicate_phone

Example:

01712345678
+8801712345678 (cleaned to 8801712345678)

5. Identity ​

What It Is:

  • National ID, Passport, or other identity number
  • Used for subscriber identification

Requirements:

  • Must be numeric
  • Unique by default (configurable)
  • Required field

Duplicate Prevention:

  • Default: Identity must be unique
  • Can be disabled in Subscriber Settings
  • Setting: allow_duplicate_nid

Format Validation:

  • Optional format checking
  • Setting: identity_formate_status
  • Country-specific format rules

Example:

1234567890123
987654321

6. Package ​

What It Is:

  • Internet package assigned to subscriber
  • Determines speed, quota, pricing

Requirements:

  • Must select from assigned packages
  • Package must exist
  • Required field

Package Assignment:

  • Admin: All packages
  • Reseller: Assigned packages only
  • Sub-reseller: Parent's assigned packages
  • Retailer: Parent's assigned packages

7. Salesperson (Admin/Staff Only) ​

What It Is:

  • User responsible for subscriber
  • Determines package availability

Requirements:

  • Admin/Staff: Must select from dropdown
  • Reseller: Auto-assigned (self)
  • Sub-reseller: Auto-assigned (self)
  • Retailer: Auto-assigned (self)
  • Reseller Staff: Auto-assigned (parent)

Optional Fields ​

1. Email ​

What It Is:

  • Subscriber's email address
  • Used for email notifications

Requirements:

  • Must be valid email format (RFC)
  • Not required
  • Auto-generates fake email if invalid

Auto-Generated Email:

If invalid or empty:
[email protected]

Example:

[email protected]
[email protected]

2. Connection Password ​

What It Is:

  • Password for Radius authentication (PPPoE/Hotspot)
  • Different from account password

Requirements:

  • Optional
  • Defaults to account password if not provided
  • Stored in plain text (for Radius)

Default Behavior:

If not provided: connection_password = password

3. Connection Type ​

What It Is:

  • Type of connection method
  • PPPoE, Hotspot, Static IP, etc.

Requirements:

  • Optional
  • Select from available types

4. NAS ​

What It Is:

  • Network Access Server (Router/OLT)
  • Where subscriber connects

Requirements:

  • Optional
  • Select from NAS in user's NAS group

5. Address & Location ​

What It Is:

  • Physical address and geographic location
  • Used for mapping and service area

Fields:

  • Address - Street address
  • Country - Country code/name
  • Province - Province/State
  • City - City name
  • Area - Area name
  • Subarea - Subarea name
  • Latitude - GPS latitude
  • Longitude - GPS longitude

Fallback Behavior:

If not provided:
Use salesperson's location data

6. Department ​

What It Is:

  • Department for subscriber categorization
  • Optional organizational grouping

7. Join Date ​

What It Is:

  • Date subscriber joined
  • Used for reporting

Default Behavior:

If not provided: join_date = current datetime

8. Identity Document (If Enabled) ​

What It Is:

  • Document file for identity verification
  • PDF, DOCX, JPEG, PNG

Requirements:

  • Required if identity_file setting = 1
  • Must select document type
  • Must upload file

Document Types:

  • Passport
  • Driver's License
  • National ID
  • Voter ID
  • Other

Validation Rules ​

Username Validation ​

✅ Minimum 3 characters
✅ Maximum 25 characters
✅ Must be unique system-wide
✅ Spaces removed automatically
❌ Cannot be duplicate

Phone Validation ​

✅ Must be numeric
✅ Non-numeric characters removed
✅ Unique by default (configurable)
✅ Format validation (optional)
❌ Cannot be duplicate (by default)

Phone Format Check:

  • Setting: phone_formate_status
  • Country-specific format rules
  • Validates phone number structure

Identity Validation ​

✅ Must be numeric
✅ Unique by default (configurable)
✅ Format validation (optional)
❌ Cannot be duplicate (by default)

Identity Format Check:

  • Setting: identity_formate_status
  • Country-specific format rules
  • Validates identity number structure

Email Validation ​

✅ Must be valid email format (RFC)
✅ Not required
✅ Auto-generates if invalid

Package Validation ​

✅ Must exist in system
✅ Must be assigned to salesperson
❌ Cannot be empty

Document Validation (If Enabled) ​

✅ File formats: PDF, DOCX, JPEG, PNG
✅ Document type required
✅ File upload required
❌ Cannot be empty if setting enabled

Auto-Generated Data ​

1. Profile Status ​

Auto-Set:

profile_status = 2 (Active)

Status Codes:

  • 1 = Register (not used)
  • 2 = Active
  • 3 = Disable
  • 4 = Expired

2. Expiration Date ​

Auto-Set:

expiration_date = current datetime + 3 minutes

Purpose:

  • Creates trial period
  • Subscriber can connect immediately
  • Must activate within 3 minutes
  • After 3 minutes: Auto-expires

Radius Attribute:

Attribute: Expiration
Value: "22 Nov 2025 21:03:00" (formatted)

3. SMS & Email Status ​

Auto-Set:

sms_status = 1 (Enabled)
email_status = 1 (Enabled)

Purpose:

  • Enables notifications by default
  • Can be changed later

4. Salesperson Assignment ​

Auto-Set Based on User Type:

Admin/Staff:

salesperson_id = selected from dropdown

Reseller/Sub-reseller/Retailer:

salesperson_id = current user ID

Reseller Staff:

salesperson_id = parent reseller ID (created_by_id)

5. ISP & Branch ​

Auto-Set:

isp_id = current session ISP ID
branch_id = current session Branch ID

6. Created By ​

Auto-Set:

created_by_id = current logged-in user ID

7. Location Data (If Not Provided) ​

Auto-Set from Salesperson:

country = salesperson's country
province = salesperson's province
city = salesperson's city
area = salesperson's area
subarea = salesperson's subarea

8. Fake Email (If Invalid) ​

Auto-Generated:

If email invalid or empty:
email = [email protected]

Example:

Input: john.doe (invalid)
Generated: [email protected]

Best Practices ​

Before Adding ​

1. Verify Package Assignment

✅ Salesperson has assigned packages
✅ Package is active
✅ Package pricing configured

2. Prepare Subscriber Data

✅ Collect all required information
✅ Verify phone number format
✅ Verify identity number format
✅ Prepare identity document (if required)

3. Check Duplicate Settings

✅ Know if duplicate phone allowed
✅ Know if duplicate identity allowed
✅ Verify username is unique

During Adding ​

1. Use Strong Passwords

✅ Minimum 8 characters
✅ Mix of letters and numbers
✅ Avoid common passwords

2. Provide Valid Email

✅ Use real email address
✅ Verify email format
✅ Avoid typos

3. Select Correct Package

✅ Verify package speed
✅ Verify package pricing
✅ Ensure package is active

4. Assign Correct Salesperson (Admin/Staff)

✅ Verify salesperson has package
✅ Verify salesperson is active
✅ Ensure correct hierarchy

After Adding ​

1. Activate Immediately

✅ Subscriber expires in 3 minutes
✅ Must activate to extend expiration
✅ Activation sets real expiration date

2. Verify Notifications

✅ Check SMS sent
✅ Check Email sent
✅ Verify credentials received

3. Test Connection

✅ Subscriber can authenticate
✅ Radius working correctly
✅ Package policy applied

4. Update Profile (If Needed)

✅ Add additional information
✅ Upload more documents
✅ Set static IP (if required)

Common Use Cases ​

Use Case 1: Quick Trial Account ​

Scenario:

New customer wants to test service
Need immediate access
3-minute trial period

Steps:

  1. Add subscriber with basic info
  2. Subscriber connects immediately
  3. Service works for 3 minutes
  4. Activate for full service

Result:

  • Instant trial access
  • No payment required yet
  • Can activate after trial

Use Case 2: New Customer Registration ​

Scenario:

New customer signs up
Full registration with documents
Immediate activation needed

Steps:

  1. Collect all customer information
  2. Upload identity document
  3. Add subscriber
  4. Activate immediately
  5. Customer starts service

Result:

  • Complete profile created
  • Documents verified
  • Service activated
  • Notifications sent

Use Case 3: Bulk Onboarding ​

Scenario:

Multiple new subscribers
Same package
Same area
Quick setup needed

Steps:

  1. Prepare subscriber list
  2. Add each subscriber individually
  3. Or use Import Subscriber feature
  4. Activate all subscribers

Result:

  • Multiple subscribers added
  • All ready for activation
  • Consistent setup

Use Case 4: Reseller Adding Subscriber ​

Scenario:

Reseller adds new customer
Auto-assigned to reseller
Package from reseller's list

Steps:

  1. Reseller logs in
  2. Adds subscriber (auto-assigned)
  3. Selects from assigned packages
  4. Subscriber created under reseller

Result:

  • Subscriber linked to reseller
  • Reseller earns profit
  • Hierarchical structure maintained

Use Case 5: Staff Adding for Reseller ​

Scenario:

Staff adds subscriber
Assigns to specific reseller
Reseller earns profit

Steps:

  1. Staff logs in
  2. Selects reseller from dropdown
  3. Adds subscriber
  4. Subscriber assigned to reseller

Result:

  • Subscriber under reseller
  • Staff facilitates onboarding
  • Reseller manages subscriber

Summary ​

Add New Subscriber is a comprehensive onboarding feature that:

✅ Quick Setup:

  • One-step subscriber creation
  • All data in single form
  • Immediate Radius authentication

✅ Auto-Configuration:

  • 3-minute trial expiration
  • Radius attributes set automatically
  • Package pool and groups updated
  • Passwords synchronized

✅ Permission-Based:

  • Admin/Staff: Select salesperson
  • Reseller: Auto-assigned
  • Staff: Assign to resellers
  • Hierarchical structure maintained

✅ Validation & Security:

  • Unique username enforcement
  • Duplicate phone/identity prevention (configurable)
  • Format validation (optional)
  • Password hashing
  • Document verification (optional)

✅ Auto-Notifications:

  • SMS with credentials
  • Email with credentials
  • Welcome messages
  • Activity logging

✅ Flexible Configuration:

  • Required/optional fields
  • Duplicate prevention settings
  • Document upload settings
  • Format validation settings

✅ Trial Period:

  • 3-minute auto-expiration
  • Immediate connection
  • Must activate for full service
  • Perfect for testing

Perfect for ISPs wanting quick subscriber onboarding with automatic Radius setup, trial periods, and comprehensive validation!

www.onezeroart.com

© 2025 Onezeroart LLC. All Rights Reserved.
