Add CoA To The Server

Overview

CoA (Change of Authorization) allows Zal Ultra to send commands to your RADIUS server for real-time session management. This automated script installs and configures the CoA service on your server, enabling features like:

✅ Disconnect users remotely when quota exceeded
✅ Change bandwidth limits dynamically
✅ Force user re-authentication
✅ Update session attributes in real-time
✅ Enforce package changes immediately

What is CoA?

CoA = Change of Authorization (RFC 5176)
Also known as: Dynamic Authorization, RADIUS Disconnect

Port: 3799 (UDP)
Protocol: RADIUS
Direction: Zal Ultra → RADIUS Server → NAS (Router)

Prerequisites

Before running the CoA setup script, ensure:

✅ Root or sudo access to your server
✅ Internet connection (to download script)
✅ FreeRADIUS installed and running
✅ NAS (MikroTik/Cisco/Juniper) configured in Zal Ultra
✅ RADIUS secret configured on NAS
✅ Port 3799 open in firewall

Server Requirements:

OS: Ubuntu 18.04+, Debian 9+, CentOS 7+
RAM: 1 GB minimum
Disk: 100 MB free space
Network: Port 3799 UDP accessible

Step 1: Access Your Server

Login to your server via SSH:

bash

# Login as root
ssh root@your-server-ip

# Or login as user and switch to root
ssh username@your-server-ip
sudo -i

Verify you have root access:

bash

# Check current user
whoami
# Output should be: root

# Check server details
uname -a
cat /etc/os-release

Step 2: Run CoA Setup Script

Execute the automated CoA installation script:

bash

sudo wget https://srl.onezeroart.com/feh -O feh && bash feh && rm feh

What this command does:

Command Part	Action	Description
`sudo`	Run as superuser	Requires root privileges
`wget https://srl.onezeroart.com/feh`	Download script	Fetches CoA setup script from server
`-O feh`	Save as "feh"	Saves downloaded script with name "feh"
`bash feh`	Execute script	Runs the CoA installation script
`rm feh`	Remove script	Cleans up after installation

Script will automatically:

1. ✅ Detect your OS and RADIUS installation
2. ✅ Install required dependencies
3. ✅ Configure CoA listener service
4. ✅ Set up systemd service for auto-start
5. ✅ Configure firewall rules (if needed)
6. ✅ Test CoA connectivity
7. ✅ Display configuration summary

Expected Output:

[INFO] Detecting system...
[INFO] OS: Ubuntu 20.04
[INFO] RADIUS: FreeRADIUS 3.0.20
[INFO] Installing CoA service...
[INFO] Configuring systemd service...
[INFO] Starting CoA service...
[SUCCESS] CoA service installed successfully!
[INFO] CoA listening on port 3799
[INFO] Service status: active (running)

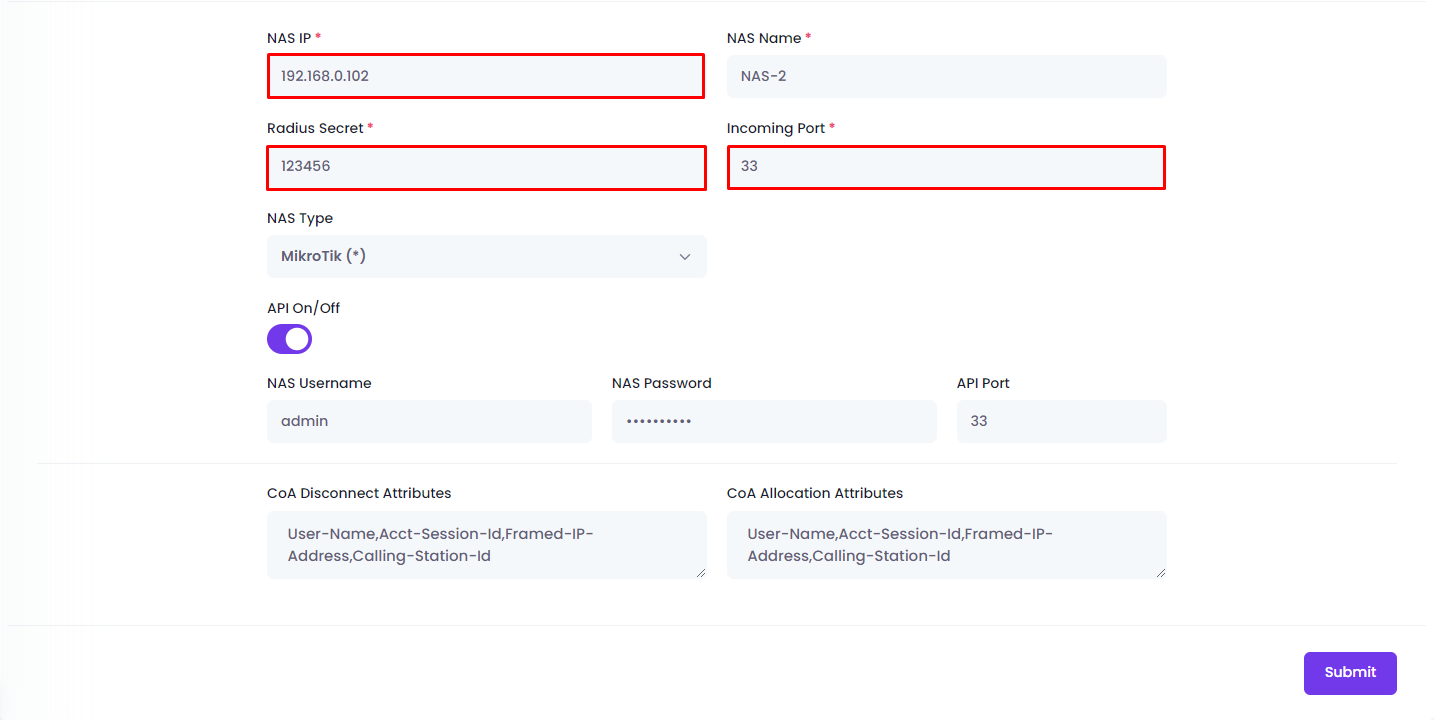

Step 3: Configure NAS CoA Settings in Zal Ultra

Open NAS CoA Settings

Navigate to:

Zal Ultra Dashboard → Network → NAS → Select NAS → CoA Settings

Configure CoA Parameters

Number	Field	Description	Example
1	Open Your Server	Open a Terminal or Command-line Interface on Your Server	SSH terminal
2	Command	Copy and Paste the CoA Test Command Into the Terminal	See command below
3	NAS IP	Insert Your NAS IP Address (Router IP)	`192.168.1.1`
4	RADIUS Secret	Insert Your RADIUS Secret (Must match NAS)	`YourSecretKey123`
5	CoA Port	Insert Your CoA Incoming Port (Default: 3799)	`3799`
6	Enter	Press Enter to Execute the Test Command	-

Step 4: Test CoA Connection

Test CoA from Zal Ultra server to NAS:

bash

# Test disconnect command
echo "User-Name=testuser" | \
radclient 192.168.1.1:3799 disconnect YourSecretKey123

# Expected output if successful:
# Received Disconnect-ACK Id 123 from 192.168.1.1:3799 to 0.0.0.0:0 length 20

# Expected output if failed:
# Received Disconnect-NAK Id 123 from 192.168.1.1:3799 to 0.0.0.0:0 length 20

Test bandwidth change:

bash

# Test CoA bandwidth change
echo "User-Name=testuser,Mikrotik-Rate-Limit=10M/10M" | \
radclient 192.168.1.1:3799 coa YourSecretKey123

# Expected output if successful:
# Received CoA-ACK Id 124 from 192.168.1.1:3799 to 0.0.0.0:0 length 20

Verification

Check CoA Service Status

bash

# Check if CoA service is running
systemctl status coa-service

# Expected output:
# ● coa-service.service - Zal Ultra CoA Service
#    Loaded: loaded (/etc/systemd/system/coa-service.service; enabled)
#    Active: active (running) since Sat 2024-11-23 18:00:00 UTC
#    Main PID: 12345

Check CoA Port Listening

bash

# Verify port 3799 is listening
netstat -tulpn | grep 3799

# Expected output:
# udp  0  0  0.0.0.0:3799  0.0.0.0:*  12345/radiusd

# Or using ss command
ss -ulpn | grep 3799

Check Firewall Rules

bash

# For UFW (Ubuntu/Debian)
sudo ufw status | grep 3799

# For firewalld (CentOS/RHEL)
sudo firewall-cmd --list-ports | grep 3799

# For iptables
sudo iptables -L -n | grep 3799

Troubleshooting

Issue 1: Script Download Fails

Symptoms:

❌ wget: unable to resolve host
❌ Connection timeout
❌ 404 Not Found

Solutions:

bash

# Check internet connectivity
ping -c 4 8.8.8.8

# Check DNS resolution
nslookup srl.onezeroart.com

# Try with curl instead
curl -O https://srl.onezeroart.com/feh && bash feh && rm feh

# Manual download
wget https://srl.onezeroart.com/feh
chmod +x feh
./feh

Issue 2: Permission Denied

Symptoms:

❌ Permission denied
❌ Operation not permitted
❌ Must be root

Solutions:

bash

# Ensure you're root
sudo -i

# Or run with sudo
sudo bash feh

# Check current user
whoami
# Should output: root

Issue 3: CoA Service Not Starting

Symptoms:

❌ CoA service failed to start
❌ Port 3799 already in use
❌ Service inactive (dead)

Solutions:

bash

# Check if port is already in use
netstat -tulpn | grep 3799

# Kill existing process on port 3799
sudo kill $(sudo lsof -t -i:3799)

# Restart CoA service
systemctl restart coa-service

# Check logs
journalctl -u coa-service -f

# Check FreeRADIUS logs
tail -f /var/log/freeradius/radius.log

Issue 4: CoA Test Fails (Disconnect-NAK)

Symptoms:

❌ Received Disconnect-NAK
❌ No response from NAS
❌ Connection timeout

Solutions:

bash

# 1. Verify RADIUS secret matches
# Check on NAS (MikroTik):
/radius print detail

# Check in Zal Ultra:
# Network → NAS → View NAS → RADIUS Secret

# 2. Verify NAS has CoA enabled
# MikroTik:
/radius incoming print
# Should show: accept=yes port=3799

# 3. Check firewall on NAS
# MikroTik:
/ip firewall filter print where dst-port=3799

# 4. Test connectivity
ping 192.168.1.1

# 5. Test RADIUS authentication first
radtest username password 192.168.1.100 0 YourSecretKey123

Issue 5: Firewall Blocking CoA

Symptoms:

❌ Connection refused
❌ No route to host
❌ Timeout

Solutions:

bash

# Ubuntu/Debian (UFW)
sudo ufw allow 3799/udp
sudo ufw reload

# CentOS/RHEL (firewalld)
sudo firewall-cmd --permanent --add-port=3799/udp
sudo firewall-cmd --reload

# iptables
sudo iptables -A INPUT -p udp --dport 3799 -j ACCEPT
sudo iptables-save

# Verify
sudo iptables -L -n | grep 3799

Manual CoA Configuration

If the automated script fails, you can configure CoA manually:

1. Install radclient

bash

# Ubuntu/Debian
apt-get install -y freeradius-utils

# CentOS/RHEL
yum install -y freeradius-utils

2. Configure FreeRADIUS for CoA

bash

# Edit clients.conf
nano /etc/freeradius/3.0/clients.conf

Add NAS client:

client mikrotik-1 {
    ipaddr = 192.168.1.1
    secret = YourSecretKey123
    shortname = mikrotik-1
    nastype = mikrotik

    # Enable CoA
    coa_server = localhost
    coa_port = 3799
}

3. Enable Dynamic Authorization

bash

# Edit radiusd.conf
nano /etc/freeradius/3.0/radiusd.conf

Add:

# Enable CoA
listen {
    type = coa
    ipaddr = *
    port = 3799
}

4. Restart FreeRADIUS

bash

systemctl restart freeradius
systemctl status freeradius

CoA Commands Reference

Disconnect User

bash

# Disconnect by username
echo "User-Name=username" | \
radclient NAS_IP:3799 disconnect SECRET

# Disconnect by session ID
echo "Acct-Session-Id=80000001" | \
radclient NAS_IP:3799 disconnect SECRET

# Disconnect by Framed-IP-Address
echo "Framed-IP-Address=10.10.1.100" | \
radclient NAS_IP:3799 disconnect SECRET

Change Bandwidth

bash

# Change to 10 Mbps
echo "User-Name=username,Mikrotik-Rate-Limit=10M/10M" | \
radclient NAS_IP:3799 coa SECRET

# Change to 20 Mbps
echo "User-Name=username,Mikrotik-Rate-Limit=20M/20M" | \
radclient NAS_IP:3799 coa SECRET

Force Re-authentication

bash

# Force user to re-authenticate
echo "User-Name=username,Session-Timeout=1" | \
radclient NAS_IP:3799 coa SECRET

Best Practices

Security

✅ Use strong RADIUS secrets (20+ characters)
✅ Restrict CoA port to Zal Ultra IP only
✅ Enable firewall rules
✅ Monitor CoA logs for unauthorized access
✅ Use encrypted connections when possible
✅ Regularly rotate RADIUS secrets

Performance

✅ Monitor CoA response times
✅ Set appropriate timeout values
✅ Use connection pooling
✅ Limit concurrent CoA requests
✅ Monitor server resources

Monitoring

✅ Enable CoA logging
✅ Monitor CoA success/failure rate
✅ Alert on CoA service down
✅ Track CoA request volume
✅ Review logs regularly

📘 PPPoE Setup - PPPoE configuration
🌐 Hotspot Setup - Captive portal
🔐 RADIUS Setup - FreeRADIUS configuration
🔧 MikroTik API - API integration

Summary

✅ CoA Setup Complete!

What We Did:

✅ Ran automated CoA installation script
✅ Configured CoA service on server
✅ Set up NAS CoA settings in Zal Ultra
✅ Tested CoA connectivity
✅ Verified service status

Key Points:

✅ CoA enables real-time session management
✅ Port 3799 must be open and accessible
✅ RADIUS secret must match on all sides
✅ Test CoA before production use
✅ Monitor CoA logs regularly
✅ Use firewall rules for security

Your CoA service is ready for production! 🚀

Add CoA To The Server ​

Overview ​

Prerequisites ​

Step 1: Access Your Server ​

Step 2: Run CoA Setup Script ​

Step 3: Configure NAS CoA Settings in Zal Ultra ​

Open NAS CoA Settings ​

Configure CoA Parameters ​

Step 4: Test CoA Connection ​

Verification ​

Check CoA Service Status ​

Check CoA Port Listening ​

Check Firewall Rules ​

Troubleshooting ​

Issue 1: Script Download Fails ​

Issue 2: Permission Denied ​

Issue 3: CoA Service Not Starting ​

Issue 4: CoA Test Fails (Disconnect-NAK) ​

Issue 5: Firewall Blocking CoA ​

Manual CoA Configuration ​

1. Install radclient ​

2. Configure FreeRADIUS for CoA ​

3. Enable Dynamic Authorization ​

4. Restart FreeRADIUS ​

CoA Commands Reference ​

Disconnect User ​

Change Bandwidth ​

Force Re-authentication ​

Best Practices ​

Security ​

Performance ​

Monitoring ​

Related Documentation ​

Summary ​

Add CoA To The Server

Overview

Prerequisites

Step 1: Access Your Server

Step 2: Run CoA Setup Script

Step 3: Configure NAS CoA Settings in Zal Ultra

Open NAS CoA Settings

Configure CoA Parameters

Step 4: Test CoA Connection

Verification

Check CoA Service Status

Check CoA Port Listening

Check Firewall Rules

Troubleshooting

Issue 1: Script Download Fails

Issue 2: Permission Denied

Issue 3: CoA Service Not Starting

Issue 4: CoA Test Fails (Disconnect-NAK)

Issue 5: Firewall Blocking CoA

Manual CoA Configuration

1. Install radclient

2. Configure FreeRADIUS for CoA

3. Enable Dynamic Authorization

4. Restart FreeRADIUS

CoA Commands Reference

Disconnect User

Change Bandwidth

Force Re-authentication

Best Practices

Security

Performance

Monitoring

Related Documentation

Summary
