Network

NAS

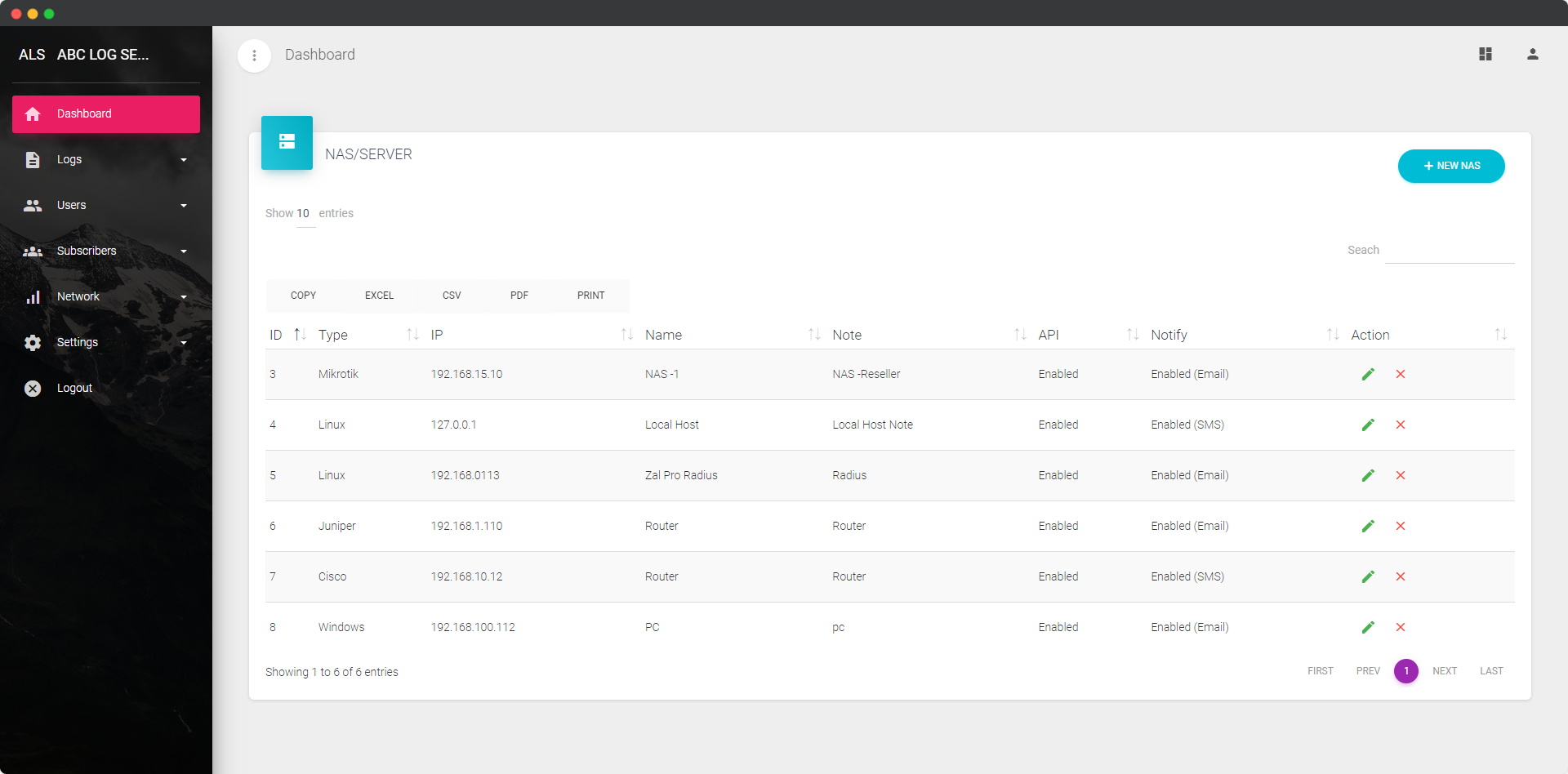

View all Network Access Servers (NAS) currently registered in the system. Gain insights into each NAS's configuration and status to effectively manage network access.

Add NAS

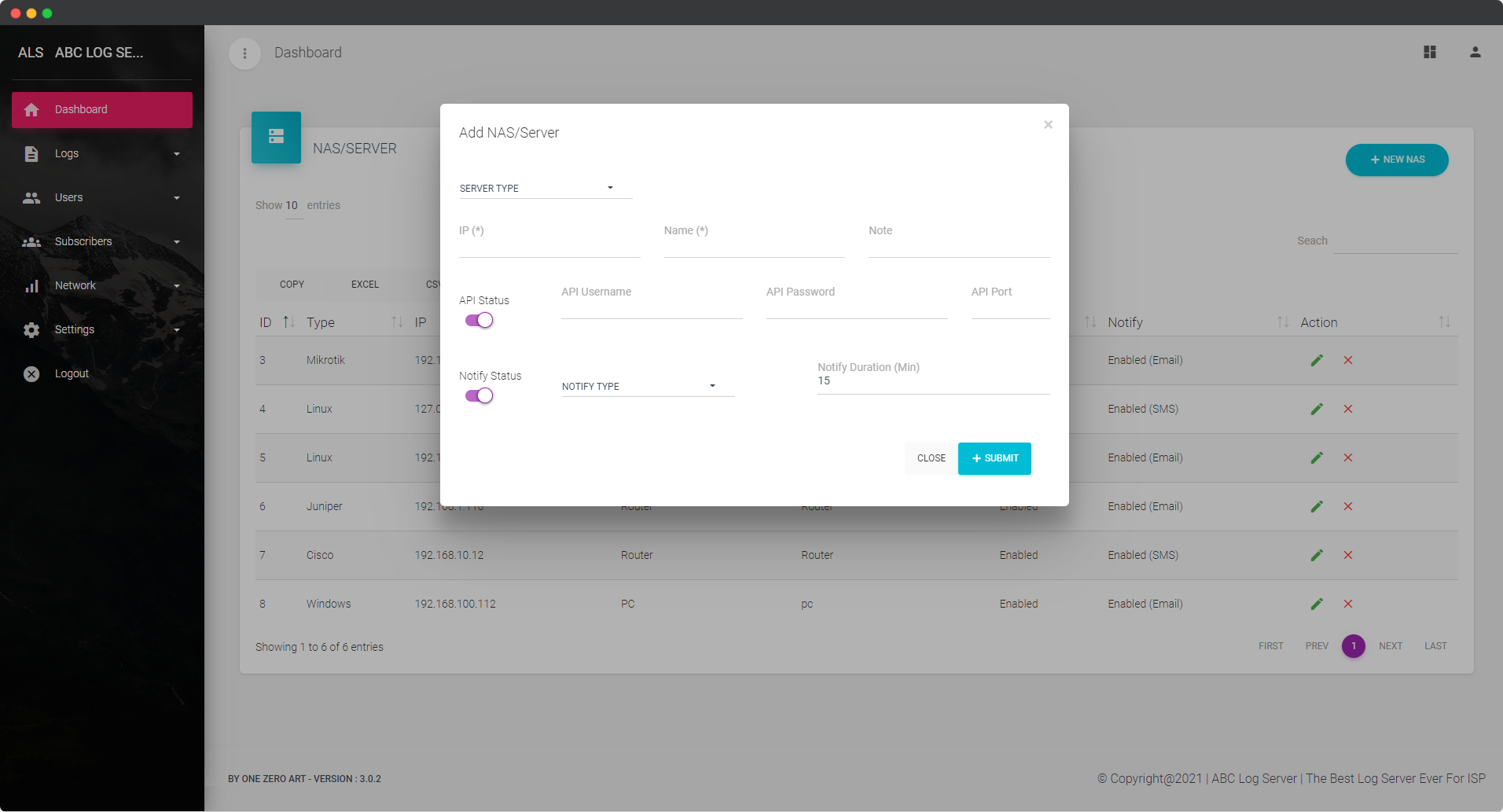

Simplify the process of adding a new Network Access Server (NAS) to the system. Enter the NAS details accurately to ensure seamless integration and efficient network management.

Number	Attribute	Description
1	Server Type	Specify the type of server for the NAS (Network Access Server), such as RADIUS or LDAP.
2	IP	Enter the IP address of the NAS device.
3	Name	Provide a unique name or identifier for the NAS.
4	Note	Add any additional notes or comments regarding the NAS.
5	API Status	Indicate whether the API for the NAS is enabled or disabled.
6	API Username	Username for API authentication.
7	API Password	Password for API authentication.
8	API Port	Port number used for API communication.
9	Notify Status	Enable or disable notification functionality for the NAS.
10	Notify Type	Specify the type of notification (e.g., email, SMS) for the NAS.
11	Notify Duration(Min)	Duration, in minutes, for each notification cycle.
